Racor

Racor is the global leader in fuel, air, oil, and coolant filtration systems for internal combustion engines and fuel delivery.

Founded in 1969, the company’s product line includes fuel filter/water separator systems, high flow filter vessels and elements, oil filter systems, automatic transmission filters, heavy-duty engine air filters, crankcase ventilation filter systems, and coolant products.

Racor also offers concentrated additives for fuel, gasoline, and lube oil. Applications include engine-powered equipment in the on-highway, off-highway, marine, agriculture, and stationary power markets.

Find a Racor product that suits your application now!

Marine Filters

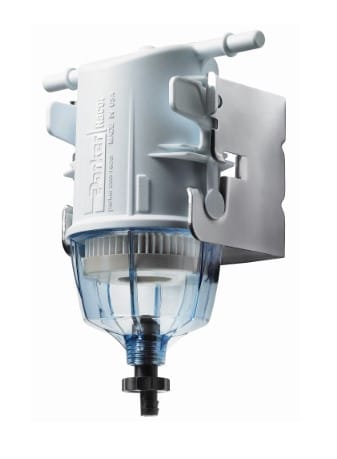

SNAPP

The One-Piece, High-Performance Snap-In Fuel Filter Water Separator, SNAPP, offers a smart and simple solution with a nylon body and a stainless corrosion-resistant mounting bracket. Just SNAPP out one assembly and snap in a new one — no need to unscrew bowls or heads. It features a clear bowl for easy contamination identification and is suitable for both petrol (2 and 4 stroke) and diesel setups up to 140Hp. Available with 10 or 2-micron element options.

Fluid Type: Gasoline
Flow Rate: up to 150 lph* see specs
Element Type: 10 Micron
Element options: 2-10-30 Micron
Height: 198 mm
Width: 97 mm
Depth: 104 mm
Weight: — Kg
Port Size: 3/8

Technical Data Sheet

320R-RAC-01

The Spin On Series 320R-RAC-01 is a very compact high flow filter which utilises a product called Aquabloc® which is a unique resin impregnation in the filter element that blocks 99% of water ingress to your engine fuel system. This filter element is 10 micron and is very popular for inboard and outboard applications

Fluid Type: Gasoline
Flow Rate: 227 lph
Element Type: 10 Micron Spin-on
Element options: 2 & 10 Micron
Height: 239 mm
Width: 102 mm
Depth: 102 mm
Weight: 0.56 Kg
Ports: 2 inlet / 1 outlet
Port Size: ¼ – 18 NPTF

Technical Data Sheet

120AT

The Spin-On Series 120AT offers reliable protection for smaller diesel and gasoline engines. Its compact size fits tight mounting locations, and multiple ports provide installation flexibility. Plus, a clear bowl and drain tap make it easy to identify and drain contamination.

Fluid Type: Diesel and Gasoline
Flow Rate: 57 lph
Element Type: 10 Micron Spin-on
Element options: 2-10-30 Micron
Height: 166 mm
Width: 81 mm
Depth: 81 mm
Weight: 0.5 Kg
Port Size: 1/4″ NPTF

Technical Data Sheet

230R10

The Spin-On Series 230R10 offers reliable protection for smaller to medium diesel engines. It comes standard with an integral manual priming pump, clear bowl, and drain tap, making it easy to identify and drain contamination.

Fluid Type: Diesel
Flow Rate: 114 lph
Element Type: 10 Micron Spin-on
Element options: 2-10-30 Micron
Height: 229 mm
Width: 102 mm
Depth: 102 mm
Weight: 0.9 Kg
Port Size: 1/4″ NPTF

Technical Data Sheet

500MA10

The Turbine Series 500MA10 is a 3 stage filtration solution for marine and industrial engines, This is a very well proven pre filter design that utilizes a product called Aquabloc® which is a unique resin impregnation in the filter element that blocks 99% of water ingress to your expensive fuel injection system.

Fluid Type: Diesel
Flow Rate: 227 lph
Element Type: 10 Micron
Element options: 2-10-30 Micron
Height: 275 mm
Depth: 142 mm
Bracket Width: 165 mm
Weight: 1.8 Kg
Port Size: ¾”- 16 UNF

Technical Data Sheet

900VMA10

The Turbine Series 900VMA10 is a 3 stage filtration solution for marine and industrial engines. This is a very well proven pre filter design that utilises a product called Aquabloc® which is a unique resin impregnation in the filter element that blocks 99% of water ingress to your expensive fuel injection system.

Fluid Type: Diesel
Flow Rate: 340 lph
Element Type: 10 Micron
Element options: 2-10-30 Micron
Height: 432 mm
Depth: 200 mm
Bracket Width: 220mm
Weight: 4.9 Kg
Port Size: 1 5/16”-12 UN-2B
2X 3/4” NPTF Adapters Supplied

Technical Data Sheet

1000VMA10

The Turbine Series with 3 stage filtration solution for marine and industrial engines. This is a very well proven pre filter design that utilizes a product called Aquabloc® which is a unique resin impregnation in the filter element that blocks 99% of water ingress to your expensive fuel injection system.
